Mazda 626 GD 1989-08 Mazda Carburetor Components 01/02 (1600) 02/02 (1800)(2000)

Mazda parts catalog

Parts > Mazda 626 > 1989-08 > Gasoline-engine Supplement > Carburetor Components(gasoline)(w/o Egi)

Search by part number:

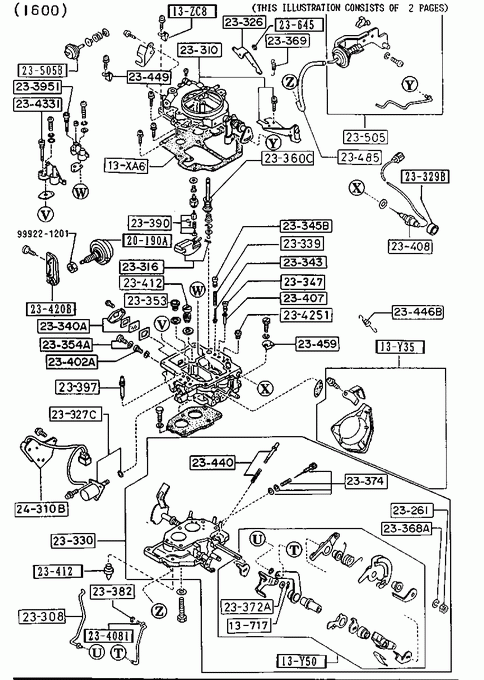

Carburetor Components(gasoline)(w/o Egi)

01/02 (1600)
02/02 (1800)(2000)

PIN,COTTER

Part Number	Qty.	Specifications	Price
166323392	1

» 13XA6

GASKET,AIR HORN

Part Number	Qty.	Specifications	Price
F80113XA6	1	ASBESTOS 1600	€ 12,92
FE4J13XA6	1	ASBESTOS 2000 1800

» 13Y35

CHAMBER SET,2ND DIAPHRAGM

Part Number	Qty.	Specifications	Price
F8D613Y35	1	1600
F8K713Y35	1	(1800>MANUAL TRANSMISSION)	€ 134,51
F8K813Y35	1	(1800>AUTOMATIC TRANSMISSION)
FE4J13Y35	1	(2000>MANUAL TRANSMISSION)
FE4K13Y35	1	(2000>AUTOMATIC TRANSMISSION)

» 13Y50

FLANGE & LEVER SET-CAB

Part Number	Qty.	Specifications	Price
F68213Y50	1	1600
F8K713Y50	1	(1800>MANUAL TRANSMISSION)
F8K813Y50	1	(1800>AUTOMATIC TRANSMISSION)
FE4J13Y50	1	(2000>MANUAL TRANSMISSION)
FE4K13Y50	1	(2000>AUTOMATIC TRANSMISSION)

» 13ZC8

CLIP,HARNESS

Part Number	Qty.	Specifications	Price
FE4A13ZC8	1	1600

» 20190A

DASH POT

Part Number	Qty.	Specifications	Price
HE2120190	1	1600 1800 (2000>MANUAL TRANSMISSION)	€ 52,70

» 23308

ROD,CONNECTING PUMP

Part Number	Qty.	Specifications	Price
FE1623443	1		€ 3,38

» 23310

HORN,AIR

Part Number	Qty.	Specifications	Price
F68213Y00	1	1600
F8K713Y00	1	(1800>MANUAL TRANSMISSION)
F8K813Y00	1	(1800>AUTOMATIC TRANSMISSION)
FE4J13Y00	1	A (FE4J-13-Y00A) (2000>MANUAL TRANSMISSION) - 900101 GD -533018
FE4J13Y00A	1	(2000>MANUAL TRANSMISSION) 900101 - GD533018-
FE4K13Y00	1	A (FE4K-13-Y00A) (2000>AUTOMATIC TRANSMISSION) - 900101 GD -533018
FE4K13Y00A	1	(2000>AUTOMATIC TRANSMISSION) 900101 - GD533018-

» 23316

FLOAT

Part Number	Qty.	Specifications	Price
F60123470	1		€ 11,56

» 23326

ARM,PUMP

Part Number	Qty.	Specifications	Price
F60123447	1		€ 7,24

» 23327C

VALVE,SOLENOID-C.R.

Part Number	Qty.	Specifications	Price
FE7A13XL0	1	1600	€ 88,52

» 23329B

CLAMP,SOLENOID WIRE

Part Number	Qty.	Specifications	Price
813023329	2	2000 1800	€ 1,12

» 23330

FLANGE SET

Part Number	Qty.	Specifications	Price
F68213Y70	1	1600
F8K713Y70	1	(1800>MANUAL TRANSMISSION)
F8K813Y70	1	(1800>AUTOMATIC TRANSMISSION)
FE4J13Y70A	1	(2000>MANUAL TRANSMISSION)
FE4K13Y70	1	(2000>AUTOMATIC TRANSMISSION)

» 23339

SPRING,CHOKE VALVE

Part Number	Qty.	Specifications	Price
813023377	1	A (FE01-13-XF2)	€ 1,48

» 23340A

GLASS,LEVEL GAUGE

Part Number	Qty.	Specifications	Price
F60123340	1

» 23343

SHEET,CHECK VALVE

Part Number	Qty.	Specifications	Price
813023370	1		€ 4,18

» 23345B

PLUG,FLOAT SCREW

Part Number	Qty.	Specifications	Price
065223345	2		€ 1,42

» 23347

PLUG,FLAT SCREW

Part Number	Qty.	Specifications	Price
FE4J13Y26	2

» 23353

JET,MAIN 1ST

Part Number	Qty.	Specifications	Price
484523351	1	(1800>AUTOMATIC TRANSMISSION) (2000>AUTOMATIC TRANSMISSION)
F60423353	1	1600
F80223353	1	(1800>MANUAL TRANSMISSION) (2000>MANUAL TRANSMISSION)

» 23354A

PLUG,MAIN JET

Part Number	Qty.	Specifications	Price
HE1923354	1

» 23360C

PLUNGER SET,PUMP

Part Number	Qty.	Specifications	Price
F60123360	1	A (FE01-13-XEX) 1600	€ 24,09
FE4J13XEX	1	2000 1800	€ 22,59

» 23368A

WASHER,SPRING

Part Number	Qty.	Specifications	Price
010713739	1

» 23369

SPRING,THROT. RETURN

Part Number	Qty.	Specifications	Price
F60123386	1	1600	€ 3,34
FE4J13XR1	1	2000 1800

» 23372A

WASHER

Part Number	Qty.	Specifications	Price
060323372	1

» 23374

SCREW SET,IDLE ADJ.

Part Number	Qty.	Specifications	Price
F8K713XMX	1	1800
FE0123460	1	1600	€ 9,15
FE4J13XMX	1	2000

» 23382

RING,STOP

Part Number	Qty.	Specifications	Price
082323382	1	1600

» 23390

VALVE SET,FLOAT

Part Number	Qty.	Specifications	Price
F60123390	1		€ 37,78

» 233951

JET,AIR BLEED NO.1

Part Number	Qty.	Specifications	Price
285023349	1	1600

» 23397

JET,STEP

Part Number	Qty.	Specifications	Price
F21013YA4	1	1600
FE4J13YA4	1	2000 1800

» 23402A

JET,MAIN 2ND

Part Number	Qty.	Specifications	Price
F60123355	1	1800
F85023402	1	2000
FE0123355	1	1600	€ 4,67

» 23407

JET,SLOW

Part Number	Qty.	Specifications	Price
813023407	1	1600
FE4J13YA3	1	2000 1800

» 23408

VALVE,SOLENOID-S.F.C

Part Number	Qty.	Specifications	Price
F68213XK0	1	1600
FE4J13XK0	1	2000 1800	€ 70,41

» 234081

WASHER

Part Number	Qty.	Specifications	Price
HE2423379	1	1600

» 23412

JET SET,POWER

Part Number	Qty.	Specifications	Price
F80123413	1		€ 10,84

» 23420B

HOLDER

Part Number	Qty.	Specifications	Price
F60323304	1	1600 (2000>MANUAL TRANSMISSION)
F8K713Y31	1	1800

» 234251

JET,SLOW AIR BLEED-S

Part Number	Qty.	Specifications	Price
028823336	1	1600	€ 5,83
F8K713YB4	1	1800
FE4J13YB4	1	2000

» 234331

JET,AIR BLEED 2ND.

Part Number	Qty.	Specifications	Price
F60123312	1	2000 - 900712 GD -579015	€ 7,49
F85023349	1	2000 900712 - GD579015-	€ 9,90

» 23440

SCREW SET,TH. ADJUST

Part Number	Qty.	Specifications	Price
F60123440	1

» 23446B

SPRING

Part Number	Qty.	Specifications	Price
F60123446	1		€ 2,29

» 23449

HOLDER

Part Number	Qty.	Specifications	Price
817323449	1

» 23459

HANGER,SPRING

Part Number	Qty.	Specifications	Price
F60123265	1	1600
F8B113XT5	1	2000 1800

» 23485

HOSE,VACUUM

Part Number	Qty.	Specifications	Price
F60123435	1	1600 2000	€ 2,12
F8K713YN5	1	1800

» 23505

PISTON,CHOKE

Part Number	Qty.	Specifications	Price
F60123215	1	(2000>AUTOMATIC TRANSMISSION)	€ 90,20
F8B113Y90	1	(2000>MANUAL TRANSMISSION)	€ 85,23
F8K713Y90	1	(1800>MANUAL TRANSMISSION)	€ 84,94
F8K813Y90	1	(1800>AUTOMATIC TRANSMISSION)
FE4A13Y90	1	1600

» 23505B

OPENER,CHOKE

Part Number	Qty.	Specifications	Price
F60123505	1	AN (FE4J-13-Y80) 1600
FE4J13Y80	1	2000 1800	€ 85,65

» 23645

RING,STOP

Part Number	Qty.	Specifications	Price
060323645	1		€ 0,32

» 24310B

SWITCH,MICRO

Part Number	Qty.	Specifications	Price
F68213XH0	1	1600	€ 73,65
FE4J13XH0	1	2000 1800

» 90901

NUT

Part Number	Qty.	Specifications	Price
999221201	1		€ 2,46

Carburetor Components(gasoline)(w/o Egi)
