Front Differentials 01/02 (EC-AT) 02/02 (HC-AT)

Front Differentials |

Mazda parts catalog

Parts > Mazda 626 > 1989-08 > Gasoline-engine & Transmission > Front Differentials

Search by part number:

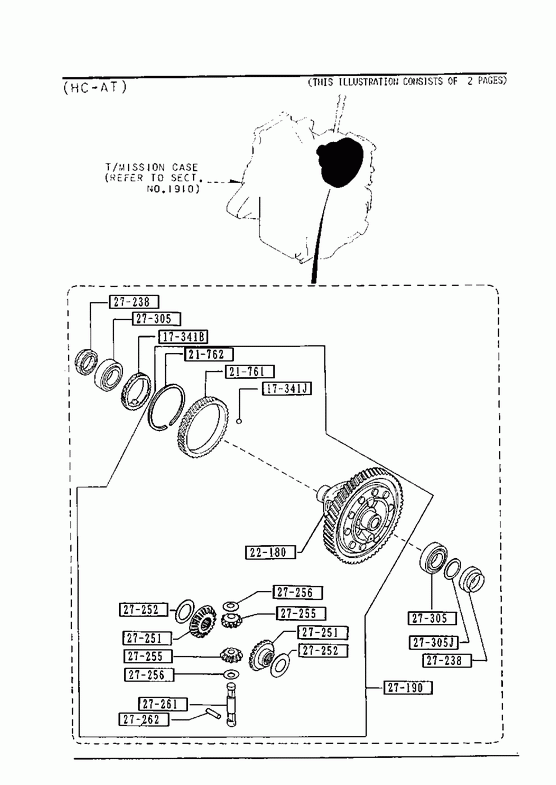

Front Differentials(automatic Transmission)

01/02 (EC-AT)
02/02 (HC-AT)

GEAR,SPEED DRIVE

Part Number	Qty.	Specifications	Price
G50117341A	1		€ 14,92

BALL,STEEL

Part Number	Qty.	Specifications	Price
996111500	1	HC-AT	€ 1,93

GEAR,DRIVE

Part Number	Qty.	Specifications	Price
FU5321761	1	HC-AT

RING,SNAP

Part Number	Qty.	Specifications	Price
FU5321762	1	HC-AT

RING GEAR & CASE

Part Number	Qty.	Specifications	Price
G03127180	1	EC-AT
G04227180	1	HC-AT

DIFF. & RING GEAR

Part Number	Qty.	Specifications	Price
G03127190A	1	AN (G031-27-190B) EC-AT - 900201 GD -541644	€ 414,02
G03127190B	1	EC-AT 900201 - GD541644-	€ 414,02
G04227190B	1	AN (G042-27-190C) HC-AT - 900201 GD -541644
G04227190C	1	HC-AT 900201 - GD541644-	€ 493,13

SEAL,OIL

Part Number	Qty.	Specifications	Price
F00327238A	2	AN (F003-27-238B) 900124 - GD538083-	€ 6,33
F00427238	2	891001 - 900124 GD504596-538083	€ 5,65

GEAR,DIFF.SIDE

Part Number	Qty.	Specifications	Price
G00227251	2	AN (G002-27-251A)	€ 34,30

WASHER,THRUST

Part Number	Qty.	Specifications	Price
G00127252	2		€ 5,14

PINION,DIFFERENTIAL

Part Number	Qty.	Specifications	Price
G00127255	2	A (G001-27-255A)	€ 31,76

WASHER,THRUST

Part Number	Qty.	Specifications	Price
G00127256	2	T=0.8MM	€ 4,18

SHAFT,DIFF. PINION

Part Number	Qty.	Specifications	Price
G00127261	1	A (G001-27-261A) - 900201 GD -541644	€ 10,38
G00127261A	1	A (G001-27-261B) 900201 - GD541644-	€ 10,38

PIN

Part Number	Qty.	Specifications	Price
G00127262	1		€ 1,41

BEARING

Part Number	Qty.	Specifications	Price
022127350	2		€ 40,08

SHIM

Part Number	Qty.	Specifications	Price
G00127401A	1	T=0.1MM	€ 2,11
G00127402A	1	T=0.2MM	€ 2,56
G00127407B	1	T=0.7MM	€ 2,21
G00127411A	1	T=0.12MM	€ 2,18
G00127412A	1	T=0.14MM	€ 2,10
G00127413A	1	T=0.16MM	€ 2,10
G00127414B	1	T=1.0MM	€ 2,30
G00127417	1	T=0.18MM	€ 2,69
G00127418	1	T=0.5MM	€ 4,88
