- Parts > Mazda 323F > 1996-10 > Body Interior Trim > Air Conditioner
- Search by part number:
-

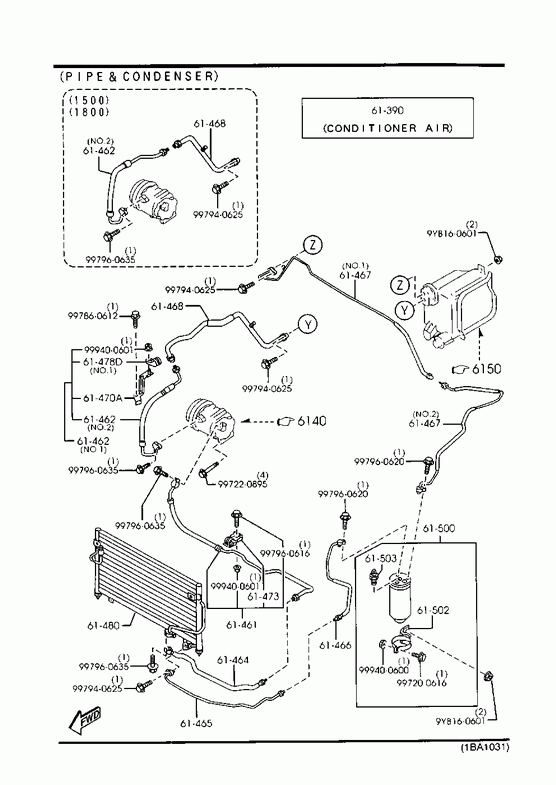

Air Conditioner
-
» 61390 CONDITIONER,AIR Part Number Qty. Specifications Price BG3F61410E 1 AN (BG3F-61-410F)
OPTION
(1800>AUTOMATIC TRANSMISSION)
- 971201
BA1*** -622456BG3F61410F 1 OPTION
(1800>AUTOMATIC TRANSMISSION)
971201 -
BA1***622456-BG3G61410A 1 A (BG3G-61-410B)
OPTION
(1800>MANUAL TRANSMISSION)
- 961101
BA1*** -501634BG3G61410D 1 AN (BG3G-61-410E)
OPTION
(1800>MANUAL TRANSMISSION)
961101 - 971201
BA1***501634-622456BG3G61410E 1 OPTION
(1800>MANUAL TRANSMISSION)
971201 -
BA1***622456-BG3H61410A 1 A (BG3H-61-410B)
OPTION
2000
- 961101
BA1*** -501634BG3H61410D 1 AN (BG3H-61-410E)
OPTION
2000
961101 - 971201
BA1***501634-622456BG3H61410E 1 OPTION
2000
971201 -
BA1***622456-BG3K61410D 1 CG (BG3K-61-410E)
OPTION
1500
- 961101
BA1*** -501634BG3K61410E 1 AN (BG3K-61-410F)
OPTION
1500
961101 - 971201
BA1***501634-622456BG3K61410F 1 OPTION
1500
971201 -
BA1***622456-» 61461 HOSE,FLEXIBLE-HIGH Part Number Qty. Specifications Price B22S614G0A 1 2000 € 153,29 B23C614G0A 1 1800 € 154,82 BG3K614G0 1 1500 € 174,47 » 61462 HOSE,FLEXIBLE-LOW Part Number Qty. Specifications Price B22S61462 1 ILLUST. NO.2
2000€ 154,82 B22S614T0 1 ILLUST. NO.1
OPTION
2000B23C61462 1 ILLUST. NO.2
STD.
1500
1800€ 154,82 BG3F61462 1 ILLUST. NO.2
OPTION
1500
1800€ 154,82 » 61464 PIPE NO.2,COOLER Part Number Qty. Specifications Price B01B61465 1 € 91,25 » 61465 PIPE NO.3,COOLER Part Number Qty. Specifications Price B01B61466 1 € 91,25 » 61466 PIPE NO.4,COOLER Part Number Qty. Specifications Price B01B61467 1 € 75,70 » 61467 PIPE NO.5,COOLER Part Number Qty. Specifications Price BC5E61468B 1 ILLUST. NO.1
STD.€ 85,20 BC5F61468B 1 AN (BC5F-61-468C)
ILLUST. NO.1
OPTION
- 980101
BA1*** -631466€ 93,11 BC5F61468D 1 ILLUST. NO.1
OPTION
980101 -
BA1***631466-€ 97,84 BC6C61468A 1 ILLUST. NO.2 € 103,32 » 61468 PIPE NO.6,COOLER Part Number Qty. Specifications Price BC5F61469C 1 STD.
1500
1800€ 133,32 BC6C61469A 1 2000 € 188,73 » 61470A BRACKET,HOSE Part Number Qty. Specifications Price B01A61471 1 2000 € 14,35 » 61473 CLIP,PIPE Part Number Qty. Specifications Price B01A61473 1 € 7,18 » 61478D CLIP Part Number Qty. Specifications Price A00161478 1 ILLUST. NO.1
2000€ 5,88 B01A61478 1 ILLUST. NO.2 € 3,54 » 61480 CONDENSER Part Number Qty. Specifications Price B01A61480 1 AN (B01A-61-480A)
STD.
1500
1800€ 456,92 B01B61480 1 A (B01A-61-480)
OPTION
1500
1800€ 456,92 BC6C61480 1 STD.
2000€ 448,32 BC6D61480 1 A (BC6C-61-480)
OPTION
2000€ 430,91 » 61500 TANK,LIQUID Part Number Qty. Specifications Price B01C61500B 1 € 170,06 » 61502 BRACKET,TANK Part Number Qty. Specifications Price B01A61502 1 € 34,58 » 61503 SWITCH,PRESSURE Part Number Qty. Specifications Price HG5461503 1 € 80,81 » 90780 BOLT Part Number Qty. Specifications Price 997200616 1 € 1,41 » 90780 BOLT Part Number Qty. Specifications Price 997220895 1 € 2,11 » 90901 NUT Part Number Qty. Specifications Price 9YB160601 1 € 3,37 » 90906 NUT,FLANGE Part Number Qty. Specifications Price 999400600 1 € 1,24 » 90906 NUT,FLANGE Part Number Qty. Specifications Price 999400601 1 € 1,28 » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 997860612 1 € 1,58 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940625 1 € 1,03 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997960616 1 € 0,81 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997960620 1 € 1,18 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997960635 1 € 1,24
