Mazda 323 BG 1989-07 Mazda Fuel System

Mazda parts catalog

Parts > Mazda 323 > 1989-07 > Diesel-engine Supplement > Fuel System(diesel)

Search by part number:

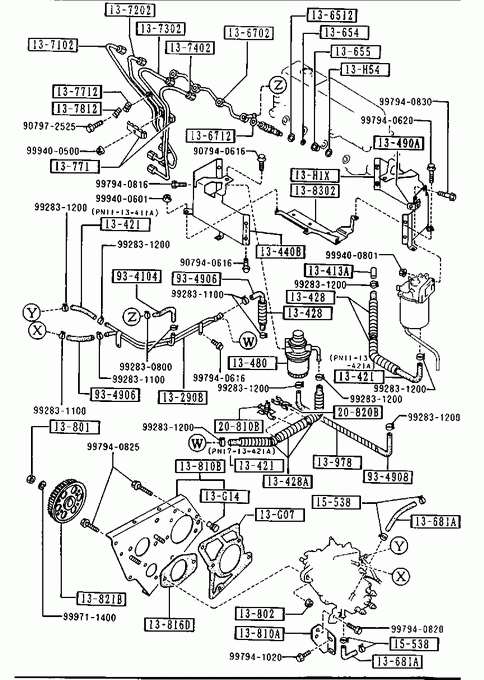

Fuel System(diesel)

PIPE,CONNECTOR

Part Number	Qty.	Specifications	Price
PN4013290	1		€ 39,31

» 13413A

PIPE,CONNECTOR-F.M.

Part Number	Qty.	Specifications	Price
D41013413	1		€ 2,67

» 13421

HOSE,FUEL MAIN

Part Number	Qty.	Specifications	Price
PN1113411A	1		€ 3,45
PN1113421A	1	891001 - *BG101102911-**
PN1713421A	1

» 13428

PROTECTOR

Part Number	Qty.	Specifications	Price
FED513428	3		€ 2,72

» 13428A

PROTECTOR

Part Number	Qty.	Specifications	Price
FE8713428	3		€ 2,43

» 13440B

BRACKET,FUEL FILTER

Part Number	Qty.	Specifications	Price
PN4713440	1	A (PN47-13-440A) - 890720 *BG101 -100298**
PN4713440A	1	890720 - *BG101100298-**

» 13480

FILTER&BODY,FUEL

Part Number	Qty.	Specifications	Price
PN1713480A	1	AN (PN17-13-480B) - 910401 *BG101 -135110**
PN1713480B	1	AN (PN17-13-480C) 910401 - 910501 *BG101135110-135233**
PN1713480C	1	910501 - *BG101135233-**	€ 46,78

» 13490A

BRACKET,FUEL FILTER

Part Number	Qty.	Specifications	Price
PN4713442	1	890720 - *BG101100298-**

» 136512

WASHER,NOZZLE

Part Number	Qty.	Specifications	Price
PN1113H51	4		€ 1,98

» 13654

GASKET

Part Number	Qty.	Specifications	Price
PN1113H52	4	NON ASBESTOS	€ 2,12

» 13655

SHIELD,HEAT

Part Number	Qty.	Specifications	Price
PN1113H53	4	AN (PN11-13-H53B)	€ 6,21

» 136702

PIPE,FUEL LEAK

Part Number	Qty.	Specifications	Price
PN1113G90	1	A (PN11-13-G90A) - 890901 *BG101 -102034**	€ 35,56
PN1113G90A	1	890901 - *BG101102034-**	€ 37,00

» 136712

GASKET,LEAK PIPE

Part Number	Qty.	Specifications	Price
PN1113G92	4	A (PN11-13-G92A) - 900701 *BG101 -118401**	€ 1,96
PN1113G92A	4	900701 - *BG101118401-**	€ 2,04

» 13681A

HOSE,WATER

Part Number	Qty.	Specifications	Price
PN4013681	2		€ 4,85

» 137102

PIPE NO.1,INJECTION

Part Number	Qty.	Specifications	Price
PN1113G10A	1	A (PN11-13-G10B) - 891001 *BG101 -102911**	€ 22,68
PN1113G10B	1	891001 - *BG101102911-**	€ 23,59

» 137202

PIPE,FUEL INJECTION

Part Number	Qty.	Specifications	Price
PN1113G20A	1	A (PN11-13-G20B) - 891001 *BG101 -102911**	€ 22,68
PN1113G20B	1	891001 - *BG101102911-**	€ 23,59

» 137302

PIPE NO.3,INJECTION

Part Number	Qty.	Specifications	Price
PN1113G30A	1	A (PN11-13-G30B) - 891001 *BG101 -102911**	€ 22,68
PN1113G30B	1	891001 - *BG101102911-**	€ 23,59

» 137402

PIPE,FUEL INJECTION

Part Number	Qty.	Specifications	Price
PN1113G40A	1	A (PN11-13-G40B) - 891001 *BG101 -102911**	€ 22,68
PN1113G40B	1	891001 - *BG101102911-**	€ 23,59

» 13771

CLIP,INJECTION PIPE

Part Number	Qty.	Specifications	Price
PN1113G45	2		€ 6,97

» 137712

CLIP,PIPE

Part Number	Qty.	Specifications	Price
SL0113770	2		€ 4,61

» 137812

CLIP,INJECTION PIPE

Part Number	Qty.	Specifications	Price
SL0113780	2		€ 5,00

» 13801

NUT

Part Number	Qty.	Specifications	Price
RF0113801	1		€ 2,18

» 13802

NUT,INJECTION PUMP

Part Number	Qty.	Specifications	Price
RF0113802	2		€ 2,93

» 13810A

STAY,INJECTION PUMP

Part Number	Qty.	Specifications	Price
PN1113G0X	1		€ 8,74

» 13810B

BRACKET,F.I.PUMP

Part Number	Qty.	Specifications	Price
PN4013G00A	1		€ 66,83

» 13816D

SPACER

Part Number	Qty.	Specifications	Price
PN1113G04	1		€ 7,81

» 13821B

PULLEY,F.I.PUMP

Part Number	Qty.	Specifications	Price
PN4013804	1		€ 52,32

» 138302

BRACKET,SEDIMENTER

Part Number	Qty.	Specifications	Price
PN4713H10	1	A (PN47-13-H10A) - 890720 *BG101 -100298**
PN4713H10A	1	A (PN47-13-H10B) 890720 - 890728 *BG101100298-100749**
PN4713H10B	1	A (PN47-13-H10C) 890728 - 891001 *BG101100749-102911**
PN4713H10C	1	891001 - *BG101102911-**

» 13978

PROTECTOR

Part Number	Qty.	Specifications	Price
RF0113862	1		€ 1,79

» 13G07

GASKET,PUMP BRKT-INJECTION

Part Number	Qty.	Specifications	Price
PN4013G07	1	A (PN63-13-G07) - 900313 *BG101 -111484**
PN6213G07	1	A (PN63-13-G07) 900313 - 900605 *BG101111484-116328**	€ 7,56
PN6313G07	1	910101 - *BG101129320-**	€ 7,01

» 13G14

FASTENER

Part Number	Qty.	Specifications	Price
PN4013G14	1		€ 0,95

» 13H1X

PROTECTOR,SEDIMENTOR

Part Number	Qty.	Specifications	Price
PN4713H1X	1	A (PN47-13-H1XA) - 890720 *BG101 -100298**
PN4713H1XA	1	890720 - *BG101100298-**

» 13H54

WASHER,SHIELD HEAT-NOZZLE

Part Number	Qty.	Specifications	Price
PN1113H54	4		€ 1,86

» 15538

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
JF0215538	4		€ 2,51

» 20810B

CLIP

Part Number	Qty.	Specifications	Price
PN4720810	1	891001 - *BG101102911-**

» 20820B

CLIP,FLUID HOSE

Part Number	Qty.	Specifications	Price
PN4120820	2	891001 - *BG101102911-**

» 90781

BOLT & WASHER

Part Number	Qty.	Specifications	Price
907972525	1		€ 0,87

» 90794

BOLT & WASHER,FLANGE

Part Number	Qty.	Specifications	Price
907940616	1		€ 1,73

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400500	1		€ 0,73

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400601	1		€ 1,28

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400801	1		€ 1,64

» 934104

HOSE

Part Number	Qty.	Specifications	Price
9934104750	1	L=1.75 CUT IT TO USE	€ 11,45

» 934906

HOSE

Part Number	Qty.	Specifications	Price
9934906750	3	L=1.75 CUT IT TO USE	€ 32,86

» 934908

HOSE

Part Number	Qty.	Specifications	Price
9934908750	1	L=1.75 CUT IT TO USE	€ 32,66

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992830800	1		€ 1,32

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992831100	1		€ 0,80

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992831200	1		€ 0,82

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940616	1		€ 1,28

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940620	1		€ 3,14

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940816	1		€ 0,79

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940820	1		€ 1,24

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940825	1		€ 1,57

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940830	1		€ 2,31

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997941020	1		€ 2,06

» 99971

WASHER,SPRING

Part Number	Qty.	Specifications	Price
999711400	1		€ 0,40

Fuel System(diesel)
