Mazda 323 BF 1987-04 Mazda Fuel Tank

Mazda parts catalog

Parts > Mazda 323 > 1987-04 > Chassis Piping & Fuel Tank > Fuel Tank(diesel)

Search by part number:

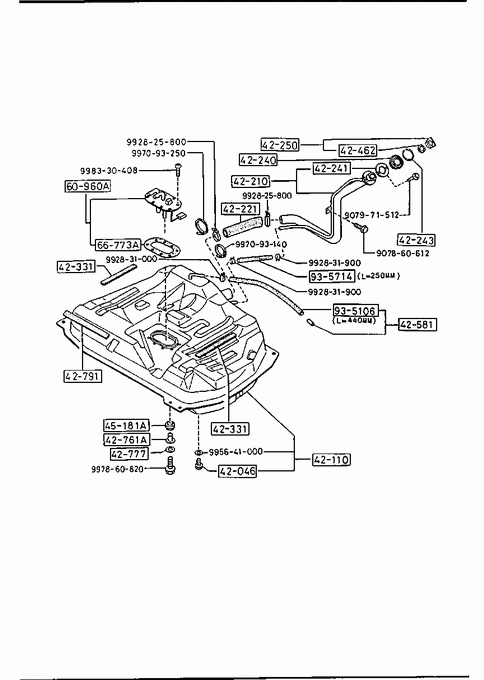

Fuel Tank(diesel)

» 42046

PLUG,DRAIN

Part Number	Qty.	Specifications	Price
BC8842045	1		€ 2,25

» 42110

TANK,FUEL

Part Number	Qty.	Specifications	Price
BM7042110	1	AN (BM70-42-110A)

» 42210

PIPE,FILLER

Part Number	Qty.	Specifications	Price
B09242210B	1		€ 77,13

» 42221

HOSE,FILLER

Part Number	Qty.	Specifications	Price
B09242241	1	AN (B092-42-241A)	€ 32,00

» 42240

COVER,DUST

Part Number	Qty.	Specifications	Price
B09242242	1		€ 8,24

» 42241

GASKET,FILLER PIPE

Part Number	Qty.	Specifications	Price
086642366B	1		€ 2,91

» 42243

RING,'O'-DUST COVER

Part Number	Qty.	Specifications	Price
B09242243	1		€ 1,20

» 42250

CAP,FILLER

Part Number	Qty.	Specifications	Price
GC7642250	1	A (G082-42-250)	€ 18,84

» 42331

SHEET

Part Number	Qty.	Specifications	Price
B00142761	2		€ 1,98

» 42462

GASKET,CAP

Part Number	Qty.	Specifications	Price
887142365	1		€ 3,46

» 42581

HOSE,BREATHER

Part Number	Qty.	Specifications	Price
B18042580A	1		€ 22,23

» 42761A

SPACER

Part Number	Qty.	Specifications	Price
B1804275Y	1

» 42777

WASHER,FUEL TANK

Part Number	Qty.	Specifications	Price
B00142778	1		€ 1,65

» 42791

PAD,FUEL TANK

Part Number	Qty.	Specifications	Price
G03042763	1		€ 3,17

» 45181A

RUBBER,MOUNT

Part Number	Qty.	Specifications	Price
B18042751A	1

» 60960A

GAUGE,FUEL TANK

Part Number	Qty.	Specifications	Price
BL6260960A	1	W/O WARN. LAMP - 870601 *BF102 -100711**
BL6260960B	1	A (BL62-60-960C) W/O WARN. LAMP 870601 - *BF102100711-**	€ 99,86
BL8260960A	1	W/WARN. LAMP.EXC.ALCOHOL - 870601 *BF102 -100711**
BL8260960B	1	A (BL82-60-960C) W/WARN. LAMP.EXC.ALCOHOL 870601 - *BF102100711-**	€ 92,53

» 66773A

GASKET

Part Number	Qty.	Specifications	Price
B09260962	1		€ 5,60

» 90720

SCREW

Part Number	Qty.	Specifications	Price
998330408	1		€ 0,55

» 90781

BOLT & WASHER

Part Number	Qty.	Specifications	Price
907971512	1		€ 0,70

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860612	1		€ 1,60

» 935106

HOSE

Part Number	Qty.	Specifications	Price
9935106999	1	L=1M CUT IT TO USE	€ 14,42

» 935714

HOSE

Part Number	Qty.	Specifications	Price
9935714999	1	L=1M CUT IT TO USE	€ 34,85

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997860820	1		€ 1,80

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992825800	1		€ 2,49

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992831000	1		€ 0,79

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992831900	1		€ 1,88

» 99560

GASKET

Part Number	Qty.	Specifications	Price
995641000	1		€ 2,00

» 99709

BAND

Part Number	Qty.	Specifications	Price
997093140	1		€ 3,57

» 99709

BAND

Part Number	Qty.	Specifications	Price
997093250	1		€ 2,76

Fuel Tank(diesel)
