- Parts > Mazda 323 > 1994-04 > Gasoline-engine 4-cylinder Transmission > Oil Pan & Timing Cover(gasoline)(1300cc)
- Search by part number:
-

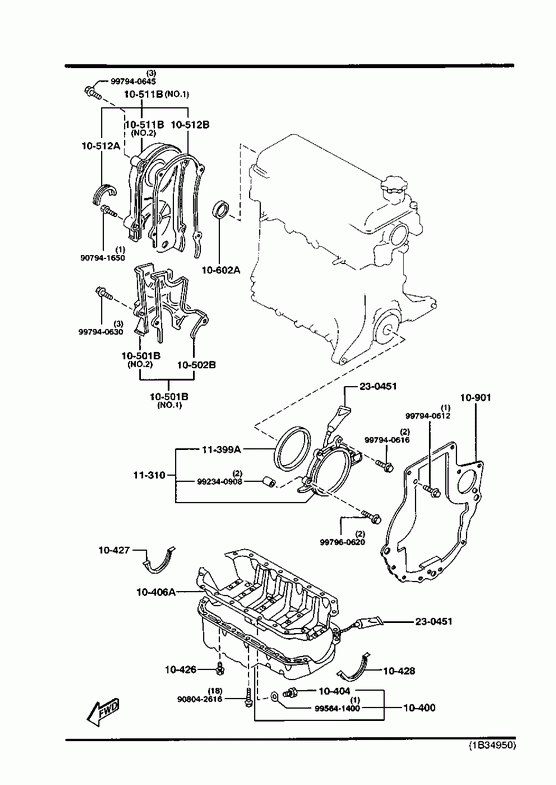

Oil Pan & Timing Cover(gasoline)(1300cc)
-
» 10400 PAN,OIL Part Number Qty. Specifications Price B36610400A 1 € 126,81 » 10404 PLUG,DRAIN Part Number Qty. Specifications Price HE0310404 1 € 2,18 » 10406A PLATE,OIL BAFFLE Part Number Qty. Specifications Price B5411040YB 1 € 84,37 » 10426 BOLT Part Number Qty. Specifications Price B54110426B 8 € 2,50 » 10427 GASKET,OIL PAN Part Number Qty. Specifications Price B54110427 1 NON ASBESTOS € 14,05 » 10428 GASKET,OIL PAN Part Number Qty. Specifications Price B54110428 1 NON ASBESTOS € 14,05 » 10501B COVER,TIMING BELT-LWR Part Number Qty. Specifications Price B63010500D 1 ILLUST. NO.1 € 29,13 B63010501C 1 A (B630-10-500D)
ILLUST. NO.2€ 27,73 » 10502B GASKET Part Number Qty. Specifications Price B63010502B 1 NON ASBESTOS € 16,81 » 10511B COVER,TIMING BELT-UP Part Number Qty. Specifications Price B63010510B 1 ILLUST. NO.1 € 50,77 B63010511B 1 A (B630-10-510B)
ILLUST. NO.2€ 48,30 » 10512A GASKET,T.BELT COVER-UP Part Number Qty. Specifications Price B63010513 1 € 14,51 » 10512B GASKET,T.B.COVER UP. Part Number Qty. Specifications Price B63010512A 1 NON ASBESTOS € 17,43 » 10602A SEAL,OIL Part Number Qty. Specifications Price B63010602 1 € 7,35 » 10901 PLATE,END Part Number Qty. Specifications Price B6S710901A 1 € 30,28 » 11310 COVER,REAR Part Number Qty. Specifications Price B36611310C 1 RYOBI € 98,83 » 11399A SEAL,OIL-CRANKSHAFT Part Number Qty. Specifications Price BP0511312 1 € 24,47 » 230451 TUBE,SILICON Part Number Qty. Specifications Price 852777739 1 € 39,13 » 90781 BOLT & WASHER Part Number Qty. Specifications Price 908042616 1 € 1,18 » 90794 BOLT & WASHER,FLANGE Part Number Qty. Specifications Price 907941650 1 € 1,89 » 99234 PIN,TUBULAR Part Number Qty. Specifications Price 992340908 1 € 2,06 » 99560 GASKET Part Number Qty. Specifications Price 995641400 1 € 1,19 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940612 1 € 0,87 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940616 1 € 1,28 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940630 1 € 1,18 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940845 1 € 2,42 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997960620 1 € 1,18
