Wiring Harnesses 01/07 (-8101) 02/07 (8101-) 03/07 (-8101) 04/07 (8101-) 05/07 06/07 07/07

Wiring Harnesses |

Mazda parts catalog

Parts > Mazda 121ECE > 1996-01 > Body Electronics > Wiring Harnesses

Search by part number:

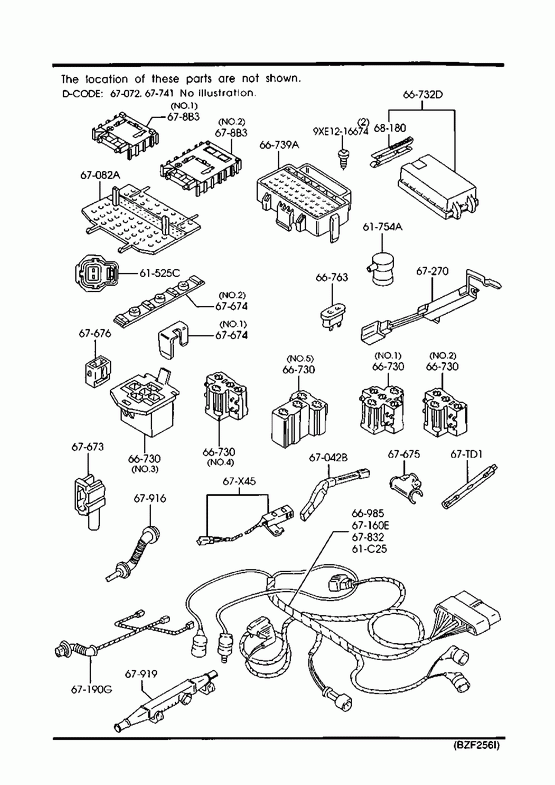

Wiring Harnesses

01/07 (-8101)
02/07 (8101-)
03/07 (-8101)
04/07 (8101-)
05/07
06/07
07/07

WIRE,CONTROL

Part Number	Qty.	Specifications	Price
1E0561526	1	(1250>AUTOMATIC TRANSMISSION) 970701 -	€ 12,88

» 61754A

SENSOR,WATER TEMPERATURE

Part Number	Qty.	Specifications	Price
1E0061754	1		€ 3,40

» 61C25

WIRE,TEMP. CONTROL

Part Number	Qty.	Specifications	Price
1E0361C25	1	1300

» 66730

BLOCK,FUSE

Part Number	Qty.	Specifications	Price
1E0066730	1	5-WAY ILLUST. NO.1	€ 1,00
1E0166730	1	4-WAY ILLUST. NO.2
1E0266730	1	ILLUST. NO.3
1E0366730	1	4-WAY ILLUST. NO.4
1E0466730	1	4-WAY ILLUST. NO.5

» 66732D

COVER,FUSE BLOCK

Part Number	Qty.	Specifications	Price
1E0166732	1	A (1E01-66-732A) - 960901
1E0166732A	1	A (1E01-66-732B) 960901 - 980101	€ 12,53
1E0166732B	1	980101 - 000201	€ 13,04
1E0266732	1	000201 -

» 66739A

HOLDER,FUSE

Part Number	Qty.	Specifications	Price
1E0066739	1	- 990101	€ 20,54
1E0066739A	1	990101 -	€ 21,37

» 66763

FUSE

Part Number	Qty.	Specifications	Price
1E0066763	1	3 AMP	€ 0,97
1E0166763	1	10 AMP	€ 0,84
1E0266763	1	15 AMP	€ 0,84
1E0366763	1	20 AMP	€ 0,84
1E0466763	1	30 AMP	€ 0,63
1E0566763	1	50 AMP	€ 2,48
1E0666763	1	40 AMP
1E0766763	1	60 AMP	€ 3,23
1E0866763	1	7.5AMP

» 66985

CORD,SPEAKER

Part Number	Qty.	Specifications	Price
1E0066985	1	A (1E00-66-985A) - 960801
1E0066985A	1	960801 - 980101
1E0066985B	1	980101 - 980401
1E0066985C	1	980401 -

» 67042B

COVER,HARNESS

Part Number	Qty.	Specifications	Price
1E0167042	1

» 67072

GROMMET

Part Number	Qty.	Specifications	Price
1E0067072	1

» 67082A

HOUSING,FUSIBL

Part Number	Qty.	Specifications	Price
1E0067082	1	- 990101
1E0167082	1	990101 -

» 67160E

WIRING,HEATER CONT.-NO.1

Part Number	Qty.	Specifications	Price
1E0067160	1	1 M NORWAY FINLAND SWD
1E0167160	1	2.5 M NORWAY FINLAND SWD
1E0267160	1	5.0 M NORWAY FINLAND SWD

» 67190G

HARNESS,DOOR

Part Number	Qty.	Specifications	Price
1E0067190	1	DRIVER SIDE - 980101	€ 56,56
1E0067190A	1	DRIVER SIDE 980101 - 980401
1E0067190B	1	DRIVER SIDE 980401 -

» 67270

SENDER,TEMPERATURE

Part Number	Qty.	Specifications	Price
1E0167270	1		€ 66,74

» 67673

CONNECTOR

Part Number	Qty.	Specifications	Price
1E0067673	1	A (1E00-67-673A) W/O ENGINE IMMOBILIZER - 980301
1E0067673A	1	W/O ENGINE IMMOBILIZER 980301 - 980901

» 67674

CONNECTOR

Part Number	Qty.	Specifications	Price
1E0067674	1	ILLUST. NO.1
1E0167674	1	ILLUST. NO.2

» 67675

CONNECTOR

Part Number	Qty.	Specifications	Price
1E0067675	1		€ 1,95

» 67676

CONNECTOR

Part Number	Qty.	Specifications	Price
1E0167676	1

» 67741

CONNECTOR,SHORT

Part Number	Qty.	Specifications	Price
1E0767741B	1	(1250>MANUAL TRANSMISSION) 980101 -

» 67832

CORD,RELAY-DR LOCK & TIMER

Part Number	Qty.	Specifications	Price
1E0067832	1

» 678B3

UNIT,RELAY BOX

Part Number	Qty.	Specifications	Price
1E00678B3	1	ILLUST. NO.1 W/O HEATED WINDSHIELD 990101 - 990901
1E01678B3	1	A (1E04-67-8B3) ILLUST. NO.1 W/HEATED WINDSHIELD 990101 - 990901
1E02678B3	1	ILLUST. NO.2 W/O HEATED WINDSHIELD 990101 -	€ 51,94
1E03678B3	1	ILLUST. NO.2 W/HEATED WINDSHIELD 990101 -
1E04678B3	1	ILLUST. NO.1 W/HEATED WINDSHIELD 990901 -
1E05678B3	1	ILLUST. NO.1 W/O HEATED WINDSHIELD 990901 -	€ 247,73

» 67916

GROMMET

Part Number	Qty.	Specifications	Price
1E0067916	1	A (1E00-67-916A) - 971001	€ 6,55
1E0067916A	1	971001 -	€ 6,68

» 67919

COVER

Part Number	Qty.	Specifications	Price
1E0067919	1	980101 - 980301
1E0067919A	1	980301 -

» 67TD1

DIODE'A',FRONT HARNESS

Part Number	Qty.	Specifications	Price
1E0067710	1	1 AMP	€ 7,23
1E0167710	1	3 AMP	€ 7,23
1E0267710	1	1.5AMP

» 67X45

HARNESS,HEAD LAMP

Part Number	Qty.	Specifications	Price
1E0067X45	1		€ 10,42

» 68180

PLIER

Part Number	Qty.	Specifications	Price
1E0068180	1

» 90720

SCREW

Part Number	Qty.	Specifications	Price
9XE1216674	1
