Mazda 121ECE ZQ 1996-01 Mazda Cooling System 01/02 02/02

Mazda parts catalog

Parts > Mazda 121ECE > 1996-01 > Diesel-engine Supplement > Cooling System(1800cc)(w/o Turbo)

Search by part number:

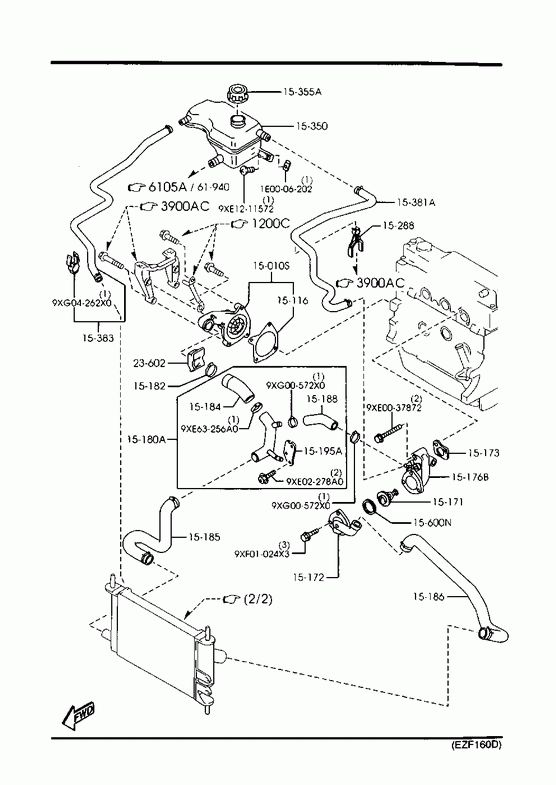

Cooling System(1800cc)(w/o Turbo)

01/02
02/02

PUMP SET,WATER

Part Number	Qty.	Specifications	Price
1E0715010	1		€ 106,39

» 15116

GASKET,WATER PUMP

Part Number	Qty.	Specifications	Price
1E0715116A	1		€ 5,68

» 15171

THERMOSTAT

Part Number	Qty.	Specifications	Price
1E0715171	1	A (1E07-15-171A) - 990901	€ 23,83
1E0715171A	1	990901 -	€ 24,80

» 15172

COVER,THERMOSTAT

Part Number	Qty.	Specifications	Price
1E0715172	1	A (1E07-15-172A) - 970501
1E0715172A	1	970501 -

» 15173

GASKET,THERMOSTAT COVER

Part Number	Qty.	Specifications	Price
1E0715173	1	A (1E07-15-173A) - 960601	€ 1,17
1E0715173A	1	960601 -	€ 1,34

» 15176B

CASE,THERMOSTAT

Part Number	Qty.	Specifications	Price
1E0715176	1	W/AIR CON.
1E1215176	1	W/O AIR CON.	€ 82,46

» 15180A

HOSE & PIPE,WATER

Part Number	Qty.	Specifications	Price
1E1215180	1	A (1E12-15-180A) - 980101
1E1215180A	1	980101 -

» 15182

CLAMP,WATER HOSE

Part Number	Qty.	Specifications	Price
1E0715182	1	A (1E07-15-182A) - 970501
1E0715182A	1	970501 -	€ 2,02

» 15184

HOSE,WATER

Part Number	Qty.	Specifications	Price
1E1215184	1	A (1E12-15-184A) - 980101
1E1215184A	1	980101 -

» 15185

HOSE,WATER

Part Number	Qty.	Specifications	Price
1E0715185A	1	A (1E07-15-185B) - 960801
1E0715185B	1	A (1E07-15-185C) 960801 - 970701
1E0715185C	1	A (1E07-15-185D) 970701 - 990101	€ 16,25
1E0715185D	1	990101 -	€ 16,74

» 15186

HOSE,WATER

Part Number	Qty.	Specifications	Price
1E0715186	1	A (1E07-15-186A) - 970701
1E0715186A	1	970701 - 000201	€ 8,80
1E0715186B	1	000201 - 000401
1E0715186C	1	000401 -

» 15188

HOSE,WATER BY-PASS

Part Number	Qty.	Specifications	Price
1E0715188	1	A (1E07-15-188A) - 980101
1E0715188A	1	980101 -

» 15195A

BRACKET,WATER PIPE

Part Number	Qty.	Specifications	Price
1E0715195	1	AN (1E07-15-195A) - 990301
1E0715195A	1	990301 -

» 15288

CLIP

Part Number	Qty.	Specifications	Price
1E0715288	1

» 15350

TANK,SUB-RADIATOR

Part Number	Qty.	Specifications	Price
1E0515350	1	A (1E05-15-350A) - 990801	€ 16,61
1E0515350A	1	990801 -	€ 17,28

» 15355A

CAP,SUB TANK

Part Number	Qty.	Specifications	Price
1E0015355	1	A (1E00-15-355A) - 970801	€ 11,32
1E0015355A	1	970801 -	€ 11,78

» 15381A

HOSE,SUB TANK

Part Number	Qty.	Specifications	Price
1E0715381	1	A (1E07-15-381A) - 960301
1E0715381A	1	A (1E07-15-381B) 960301 - 970701
1E0715381B	1	970701 -	€ 32,18

» 15383

HOSE,SUB TANK

Part Number	Qty.	Specifications	Price
1E0715383	1	A (1E07-15-383A) - 970701
1E0715383A	1	970701 - 000301
1E0715383B	1	000301 -

» 15600N

RING,'O'

Part Number	Qty.	Specifications	Price
9XG00319X0	1	MANUAL TRANSMISSION	€ 1,73

» 23602

GROMMET

Part Number	Qty.	Specifications	Price
1E1223602	1

» 90720

SCREW

Part Number	Qty.	Specifications	Price
9XE1211572	1

» 90720

SCREW

Part Number	Qty.	Specifications	Price
9XF01024X3	1

» 99274

CLIP

Part Number	Qty.	Specifications	Price
9XG04262X0	1

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
9XE63256A0	1

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
9XG00572X0	1		€ 2,37

» 99601

BOLT

Part Number	Qty.	Specifications	Price
9XE0037872	1

» 99601

BOLT

Part Number	Qty.	Specifications	Price
9XE02278A0	1

» 99896

NUT,SPRING

Part Number	Qty.	Specifications	Price
1E0006202	1

Cooling System(1800cc)(w/o Turbo)
