Mazda 121ECE ZQ 1996-01 Mazda Cooling System 01/02 02/02

|

Mazda parts catalog

Parts > Mazda 121ECE > 1996-01 > Gasoline-engine 4-cylinder Supplement > Cooling System(1250cc)

Search by part number:

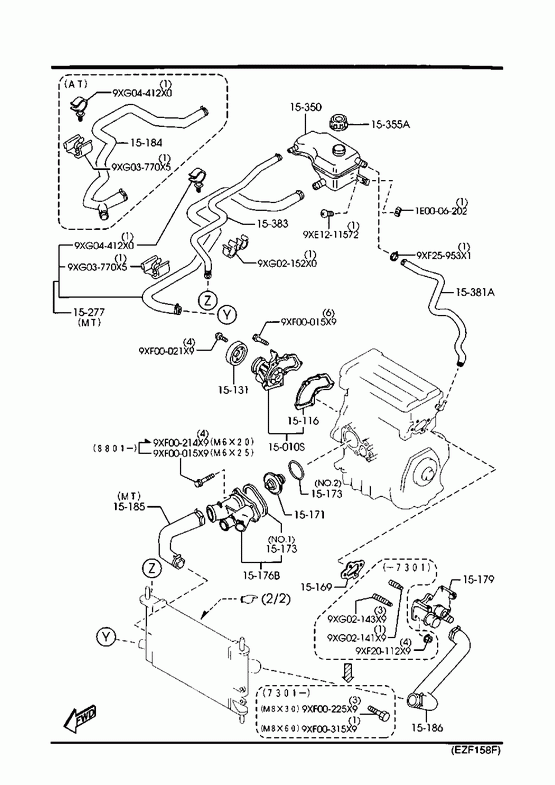

Cooling System(1250cc)

01/02
02/02

PUMP SET,WATER

Part Number	Qty.	Specifications	Price
1E0615010	1		€ 73,98

GASKET,WATER PUMP

Part Number	Qty.	Specifications	Price
1E0515116	1	A (1E05-15-116A) - 960101	€ 5,76
1E0515116A	1	960101 -

PULLEY,WATER PUMP

Part Number	Qty.	Specifications	Price
1E0515131	1		€ 15,50

GASKET,WATER OUTLET

Part Number	Qty.	Specifications	Price
1E0515169	1	A (1E05-15-169A) - 970301	€ 4,06
1E0515169A	1	970301 - 020501	€ 4,06
1E0515169B	1	020501 -	€ 4,22

THERMOSTAT

Part Number	Qty.	Specifications	Price
1E0515171A	1		€ 16,76

GASKET,THERMOSTAT COVER

Part Number	Qty.	Specifications	Price
1E0515173	1	ILLUST. NO.1	€ 2,27
1E0615173	1	ILLUST. NO.2 - 001201	€ 4,25
1E0615173A	1	ILLUST. NO.2 001201 -	€ 4,43

CASE,THERMOSTAT

Part Number	Qty.	Specifications	Price
1E0515176	1	- 980801	€ 25,66
1E0515176A	1	980801 - 000101
1E0615176	1	000101 -	€ 26,04

OUTLET,WATER PUMP

Part Number	Qty.	Specifications	Price
1E051517Z	1	A (1E05-15-17ZA) - 970801
1E051517ZA	1	970801 - 990601	€ 228,72
1E051517ZB	1	990601 - 000109
1E051517ZC	1	A (1E05-15-17ZD) 000109 - 020701	€ 47,38
1E051517ZD	1	020701 -	€ 49,30

HOSE,WATER

Part Number	Qty.	Specifications	Price
1E0515184A	1	A (1E05-15-184B) AUTOMATIC TRANSMISSION - 961201	€ 25,25
1E0515184B	1	AUTOMATIC TRANSMISSION 961201 -	€ 25,76

HOSE,WATER

Part Number	Qty.	Specifications	Price
1E0515185	1	A (1E05-15-185A) W/AIR CON. MANUAL TRANSMISSION - 960301
1E0515185A	1	A (1E05-15-185B) W/AIR CON. MANUAL TRANSMISSION 960301 - 961201
1E0515185B	1	W/AIR CON. MANUAL TRANSMISSION 961201 -	€ 10,56
1E0615185	1	A (1E06-15-185A) W/O AIR CON. MANUAL TRANSMISSION - 960901
1E0615185A	1	A (1E06-15-185B) W/O AIR CON. MANUAL TRANSMISSION 960901 - 961201
1E0615185B	1	W/O AIR CON. MANUAL TRANSMISSION 961201 -	€ 10,56

HOSE,WATER

Part Number	Qty.	Specifications	Price
1E0515186A	1	A (1E05-15-186B) - 961201	€ 10,25
1E0515186B	1	961201 - 000201	€ 10,56
1E1015186	1	A (1E10-15-186A) 000201 - 000301
1E1015186A	1	000301 -

HOSE,WATER SUB TANK

Part Number	Qty.	Specifications	Price
1E0315277	1	A (1E03-15-277A) W/AIR CON. MANUAL TRANSMISSION - 961201	€ 14,53
1E0315277A	1	W/AIR CON. MANUAL TRANSMISSION 961201 -	€ 15,12
1E0415277	1	A (1E04-15-277A) W/O AIR CON. MANUAL TRANSMISSION - 961201	€ 14,70
1E0415277A	1	W/O AIR CON. MANUAL TRANSMISSION 961201 -	€ 15,29

TANK,SUB-RADIATOR

Part Number	Qty.	Specifications	Price
1E0515350	1	A (1E05-15-350A) - 990801	€ 16,61
1E0515350A	1	990801 -	€ 17,28

CAP,SUB TANK

Part Number	Qty.	Specifications	Price
1E0015355	1	A (1E00-15-355A) - 970801	€ 11,32
1E0015355A	1	970801 -	€ 11,78

HOSE,SUB TANK

Part Number	Qty.	Specifications	Price
1E0515381A	1	A (1E05-15-381C) - 970301	€ 17,67
1E0515381D	1	A (1E05-15-381E) 970301 - 000101	€ 17,67
1E0515381E	1	A (1E05-15-381F) 000101 - 000201	€ 17,67
1E0515381F	1	000201 -	€ 18,38

HOSE,SUB TANK

Part Number	Qty.	Specifications	Price
1E0515383A	1	A (1E05-15-383B) - 961201
1E0515383B	1	A (1E06-15-381) 961201 - 991001	€ 13,39
1E0615381	1	991001 -	€ 13,93

SCREW

Part Number	Qty.	Specifications	Price
9XE1211572	1

SCREW

Part Number	Qty.	Specifications	Price
9XF00021X9	1		€ 1,10

STUD

Part Number	Qty.	Specifications	Price
9XG02141X9	1

STUD

Part Number	Qty.	Specifications	Price
9XG02143X9	1

NUT

Part Number	Qty.	Specifications	Price
9XF20112X9	1

CLIP

Part Number	Qty.	Specifications	Price
9XG02152X0	1

CLIP

Part Number	Qty.	Specifications	Price
9XG03770X5	1		€ 1,00

CLIP

Part Number	Qty.	Specifications	Price
9XG04412X0	1		€ 0,71

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
9XF25953X1	1

BOLT

Part Number	Qty.	Specifications	Price
9XF00015X9	1		€ 1,32

BOLT

Part Number	Qty.	Specifications	Price
9XF00214X9	1		€ 0,75

BOLT

Part Number	Qty.	Specifications	Price
9XF00225X9	1		€ 0,50

BOLT

Part Number	Qty.	Specifications	Price
9XF00315X9	1

NUT,SPRING

Part Number	Qty.	Specifications	Price
1E0006202	1
