Mazda 121 DB 1990-12 Mazda Fender & Wheel Apron Panels

Mazda parts catalog

Parts > Mazda 121 > 1990-12 > Body Exterior Trim > Fender & Wheel Apron Panels

Search by part number:

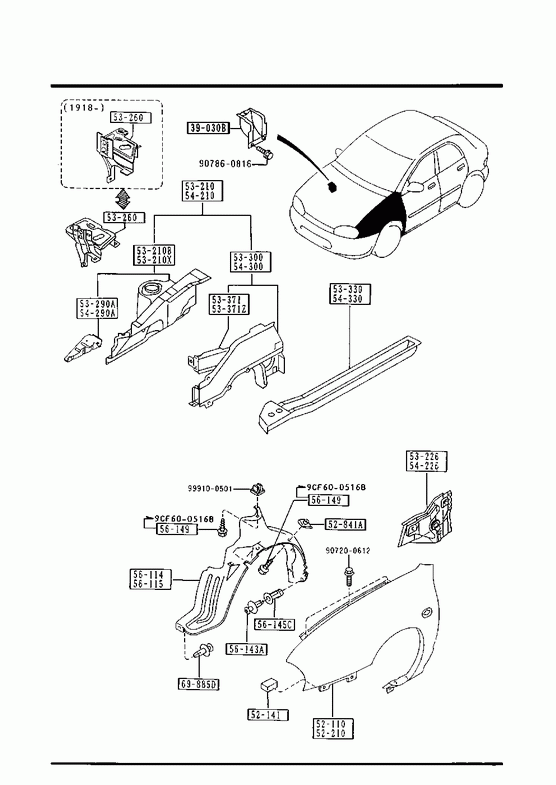

Fender & Wheel Apron Panels

BRACKET NO.3,ENGINE

Part Number	Qty.	Specifications	Price
D06153250B	1	A (D061-53-250C) - 910302 *DB101 -104629**
D06153250C	1	910302 - *DB101104629-**	€ 37,57

» 52110

PANEL(R),FENDER-FRT.

Part Number	Qty.	Specifications	Price
DB0252111B	1		€ 171,12

» 52141

RUBBER,SEAL FENDER

Part Number	Qty.	Specifications	Price
D061560A2	2		€ 2,77

» 52210

PANEL(L),FENDER-FRT.

Part Number	Qty.	Specifications	Price
DB0252211B	1		€ 171,12

» 52841A

NUT,CLIP

Part Number	Qty.	Specifications	Price
B45556135	4		€ 1,25

» 53210

PANEL(R),APRON & FRAME

Part Number	Qty.	Specifications	Price
DBY253200	1		€ 327,82

» 53210B

PANEL(R),WHEEL APRON

Part Number	Qty.	Specifications	Price
D06153210D	1	AN (D061-53-210E) - 910226 *DB101 -104397**
D06153210E	1	A (D061-53-210F) 910226 - 921101 *DB101104397-116198**
D06153210F	1	AN (D061-53-210G) 921101 - *DB101116198-**

» 53210X

PANEL(L),WHEEL APRON

Part Number	Qty.	Specifications	Price
D06154210D	1	A (D061-54-210E) - 910212 *DB101 -103560**
D06154210E	1	A (D061-54-210F) 910212 - 910701 *DB101103560-106736**
D06154210F	1	C (D061-54-210G) 910701 - 921101 *DB101106736-116198**	€ 196,62
D06154210H	1	AN (D061-54-210J) 921101 - 930701 *DB101116198-120945**	€ 196,62
D06154210J	1	AN (D061-54-210K) 930701 - *DB101120945-**	€ 196,62

» 53226

REINF.(R),WHL APRON-REAR

Part Number	Qty.	Specifications	Price
D06153226A	1	AN (D061-53-226B) - 910101 *DB101 -101321**
D06153226B	1	AN (D101-53-226) 910101 - 921120 *DB101101321-116316**	€ 22,69
D10153226	1	921120 - *DB101116316-**	€ 23,86

» 53260

CARRIER,BATTERY

Part Number	Qty.	Specifications	Price
D06154260A	1	A (D061-54-260B) - 910101 *DB101 -101321**
D06154260B	1	A (DB24-54-260) 910101 - 910918 *DB101101321-107588**
DB2454260	1	910918 - *DB101107588-**

» 53290A

BRACKET(R),FENDER

Part Number	Qty.	Specifications	Price
D06153270A	1	AN (D061-53-270B)	€ 12,19

» 53300

FRAME(R),SIDE-FRONT

Part Number	Qty.	Specifications	Price
D06153300A	1	A (D061-53-300B) - 910207 *DB101 -103274**
D06153300B	1	AN (D061-53-300C) 910207 - 930201 *DB101103274-117939**
D06153300C	1	930201 - *DB101117939-**

» 53330

FRAME(R),FRONT-LOWER

Part Number	Qty.	Specifications	Price
D06153350	1	G (D061-53-350A) 920801 - 930601 *DB101114372-120413**	€ 88,57
D06153350A	1	930601 - *DB101120413-**	€ 88,57
DA1453350A	1	- 920801 *DB101 -114372**	€ 87,70

» 53371

FRAME(R),BUMPER-F.SIDE

Part Number	Qty.	Specifications	Price
D00153371	1		€ 13,72

» 53371Z

FRAME(L),BUMPER-F.SIDE

Part Number	Qty.	Specifications	Price
D06154370	1	AN (D061-54-370A) - 930618 *DB101 -120843**	€ 19,30
D06154370A	1	930618 - *DB101120843-**	€ 19,69

» 54210

PANEL(L),APRON & FRAME

Part Number	Qty.	Specifications	Price
D0Z154200	1	AN (D0Z1-54-200A) - 930201 *DB101 -117939**	€ 315,09
D0Z154200A	1	AN (D0Z1-54-200B) 930201 - 930701 *DB101117939-120945**
D0Z154200B	1	AN (D0Z1-54-200C) 930701 - *DB101120945-**	€ 315,09

» 54226

REINF.(L),APRON-REAR

Part Number	Qty.	Specifications	Price
D06154226A	1	AN (D061-54-226B) - 910101 *DB101 -101321**
D06154226B	1	AN (D101-54-226) 910101 - 921120 *DB101101321-116316**	€ 22,69
D10154226	1	921120 - *DB101116316-**	€ 23,86

» 54290A

BRACKET(L),FENDER

Part Number	Qty.	Specifications	Price
D06154270A	1	AN (D061-54-270B)	€ 12,19

» 54300

FRAME(L),SIDE-FRONT

Part Number	Qty.	Specifications	Price
D06154300A	1	A (D061-54-300B) - 910214 *DB101 -103712**
D06154300B	1	AN (D061-54-300C) 910214 - 930201 *DB101103712-117939**	€ 221,52
D06154300C	1	AN (D061-54-300D) 930201 - 930527 *DB101117939-120345**	€ 221,52
D06154300D	1	AN (D061-54-300E) 930527 - 930618 *DB101120345-120843**	€ 221,52
D06154300E	1	930618 - *DB101120843-**	€ 230,47

» 54330

FRAME(L),FRONT-LOWER

Part Number	Qty.	Specifications	Price
D06154350	1	920801 - *DB101114372-**	€ 89,45
DA1454350A	1	- 920801 *DB101 -114372**	€ 87,70

» 56114

GUARD(R),MUD

Part Number	Qty.	Specifications	Price
D06156131A	1	AN (D061-56-131B) - 901222 *DB101 -101065**	€ 49,28
D06156131B	1	901222 - *DB101101065-**	€ 51,28

» 56115

GUARD(L),MUD

Part Number	Qty.	Specifications	Price
D06156141A	1	AN (D061-56-141B) - 901222 *DB101 -101065**	€ 49,28
D06156141B	1	AN (D061-56-141C) 901222 - *DB101101065-**	€ 49,28

» 56143A

RIVET,MUD GUARD

Part Number	Qty.	Specifications	Price
B45556143	4		€ 1,40

» 56145C

CLIP,MUD GUARD

Part Number	Qty.	Specifications	Price
B45556145	4		€ 0,52

» 56149

SCREW,TAPPING-MUD GUARD

Part Number	Qty.	Specifications	Price
B45556149	14	- 930201 *DB101 -117939**	€ 1,39

» 69885D

FASTENER

Part Number	Qty.	Specifications	Price
NA0156145	2		€ 1,90

» 90720

SCREW

Part Number	Qty.	Specifications	Price
9CF600516B	1		€ 1,64

» 90730

SCREW & WASHER

Part Number	Qty.	Specifications	Price
907200612	1		€ 1,04

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860816	1		€ 2,06

» 99910

GROMMET,SCREW

Part Number	Qty.	Specifications	Price
999100501	1		€ 1,33
